Our production is composed by inductance, inductive reactance, single-phase and three-phase electric transformer in range 1 VA - 10 KVA. All our transformer are tested before the delivery in order to guarantee the perfect operation. On request we also perform heating test. THE TRANSFORMERS ARE PLANNED AND PRODUCED ON CUSTOMER'S REQUEST OR ON OUR OWN SPECIFICATION.

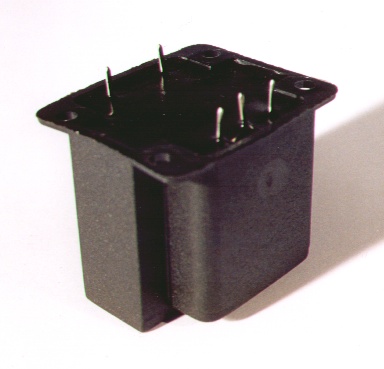

TRANSFORMER FOR PCB

Transformer for electronic cards can be supplied with or without box and with different pins on customer request. Primary and secondary voltage on request.

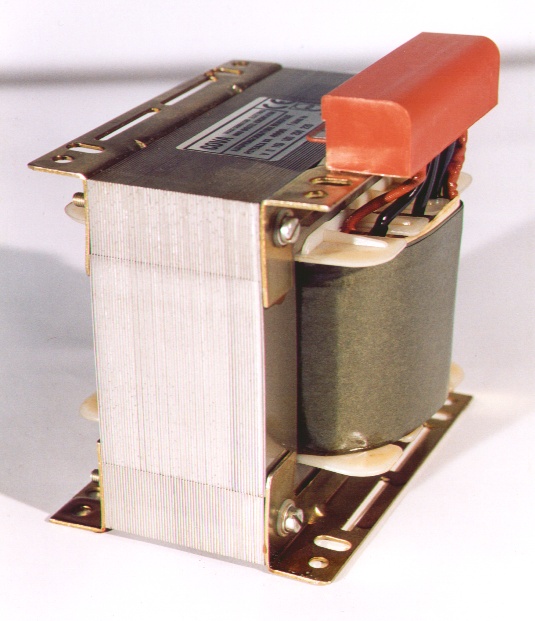

INSULATING TRANSFORMER

CODE	Power VA	Width mm	Depht mm	Height mm	Weight Kg
TM 30 S	30	75	91	78	0,93
TM 50 S	50	75	105	78	1,39
TM 100 S	100	84	105	84	1,85
TM 160 S	160	96	105	94	2,47
TM 250 S	250	108	116	120	3,70
TM 500 S	500	150	120	147	7,40
TM 1000 S	1000	150	147	147	11,70

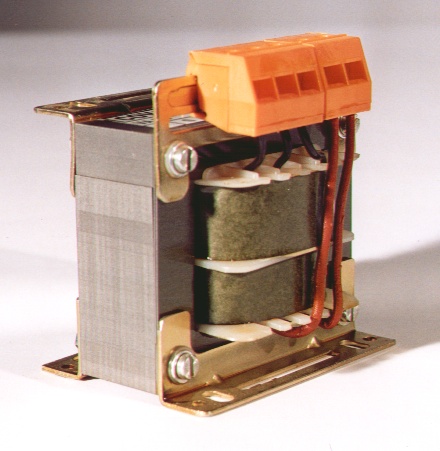

SINGLE-PHASE AUTOTRANSFORMERS

CODE	Power VA	Width mm	Depht mm	Height mm	Weight Kg
AM 100	100	75	73	78	0,90
AM 200	200	84	90	84	1,90
AM400	400	96	101	94	3,00
AM 800	800	120	104	112	4,70
AM 1000	1000	120	114	112	5,60
AM 2000	2000	150	"90"	147	8,80
AM 4000	4000	180	150	190	17,70

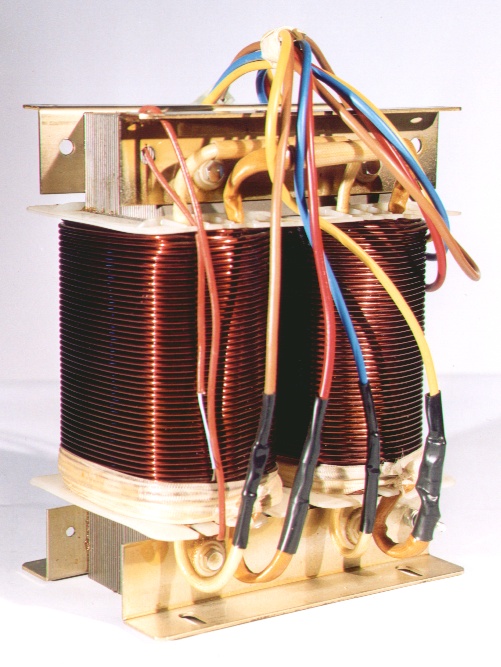

CORE-TYPE TRANSFORMERS

CODE	Power VA	Width mm	Depht mm	Height mm	Weight Kg
TU 4000 S	4000	240	240	320	35,0
TU 5000 S	5000	240	250	320	37,0
TU 7500 S	7500	280	240	400	52,0
TU 10000 S	10000	280	250	400	61,0

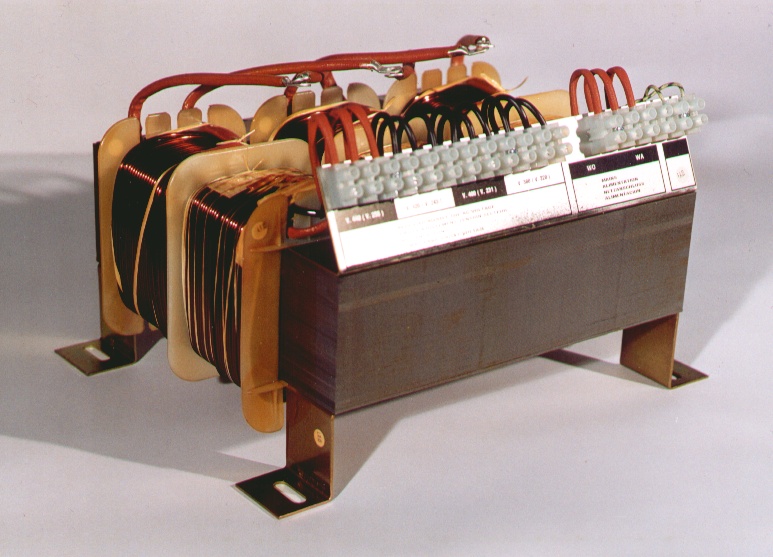

TREE-PHASE TRANSFORMERS

CODE	Power VA	Width mm	Depht mm	Height mm	Weight Kg
TR 1000	1000	180	105	180	9,7
TR 2000	2000	240	125	230	18,2
TR 3000	3000	240	150	230	24,0
TR 4000	4000	300	130	305	28,4
TR 5000	5000	300	140	305	33,0
TR 10000	10000	360	160	350	63,0
